Front 500W Geared Hub Motor Kit for Fat Bikes

Front 500W Geared Hub Motor Kit for Fat Bikes

Regular price $525.00 CAD
Regular price Sale price $525.00 CAD
Sale Sold out
Wheel Size
Throttle Type

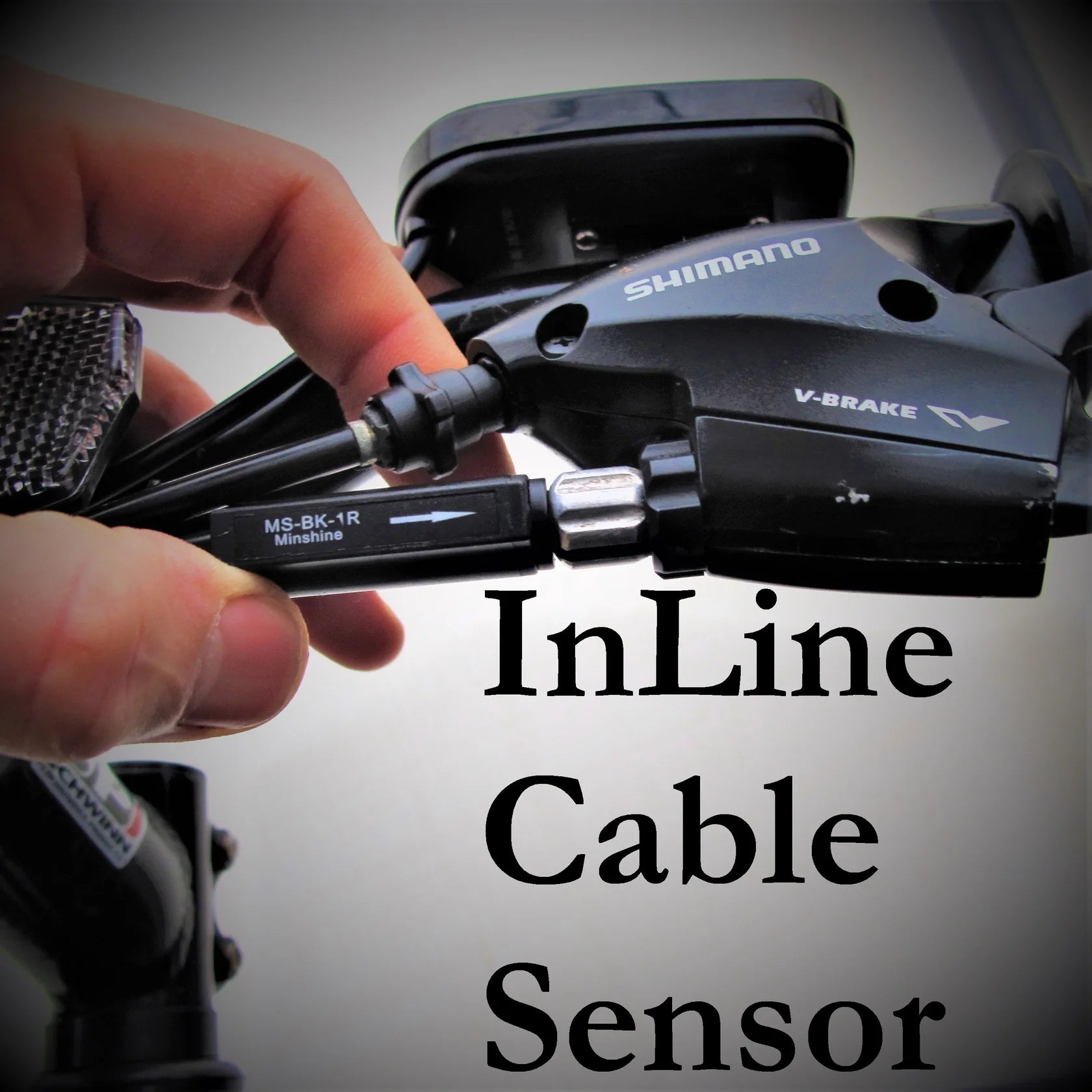

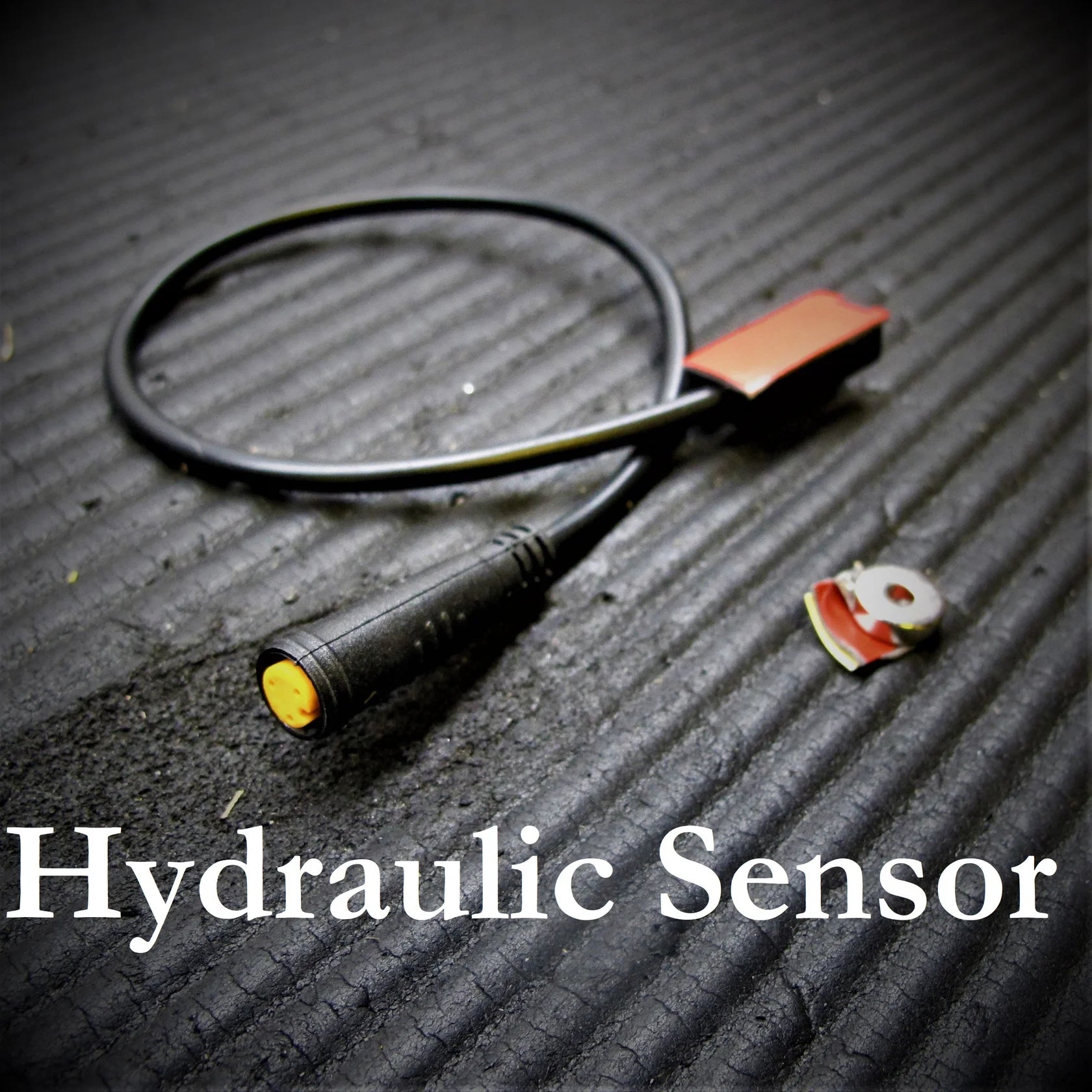

Brake Sensor Type

They're finally here!

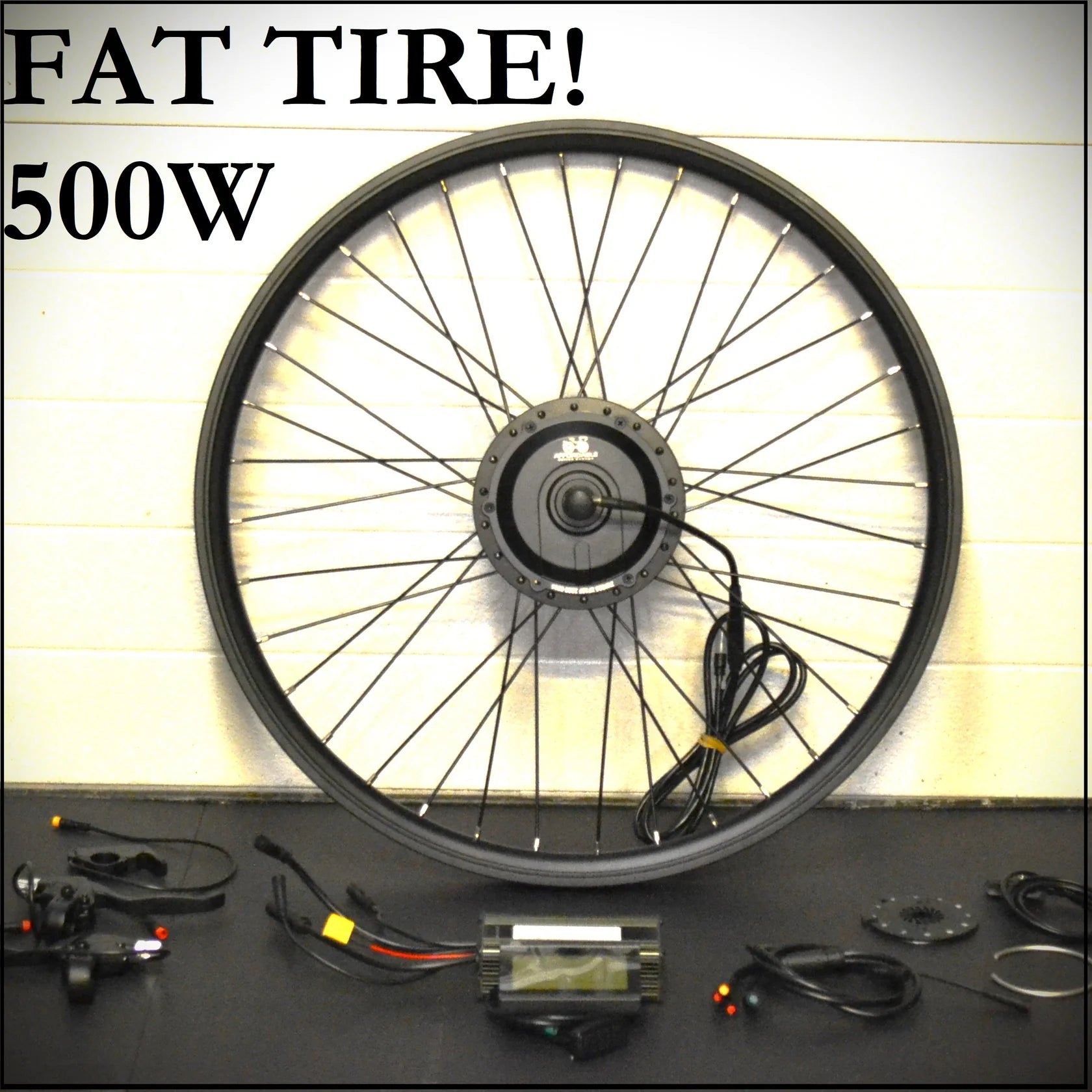

Introducing the 26'' FAT 500W Front Hub Motor Kit!

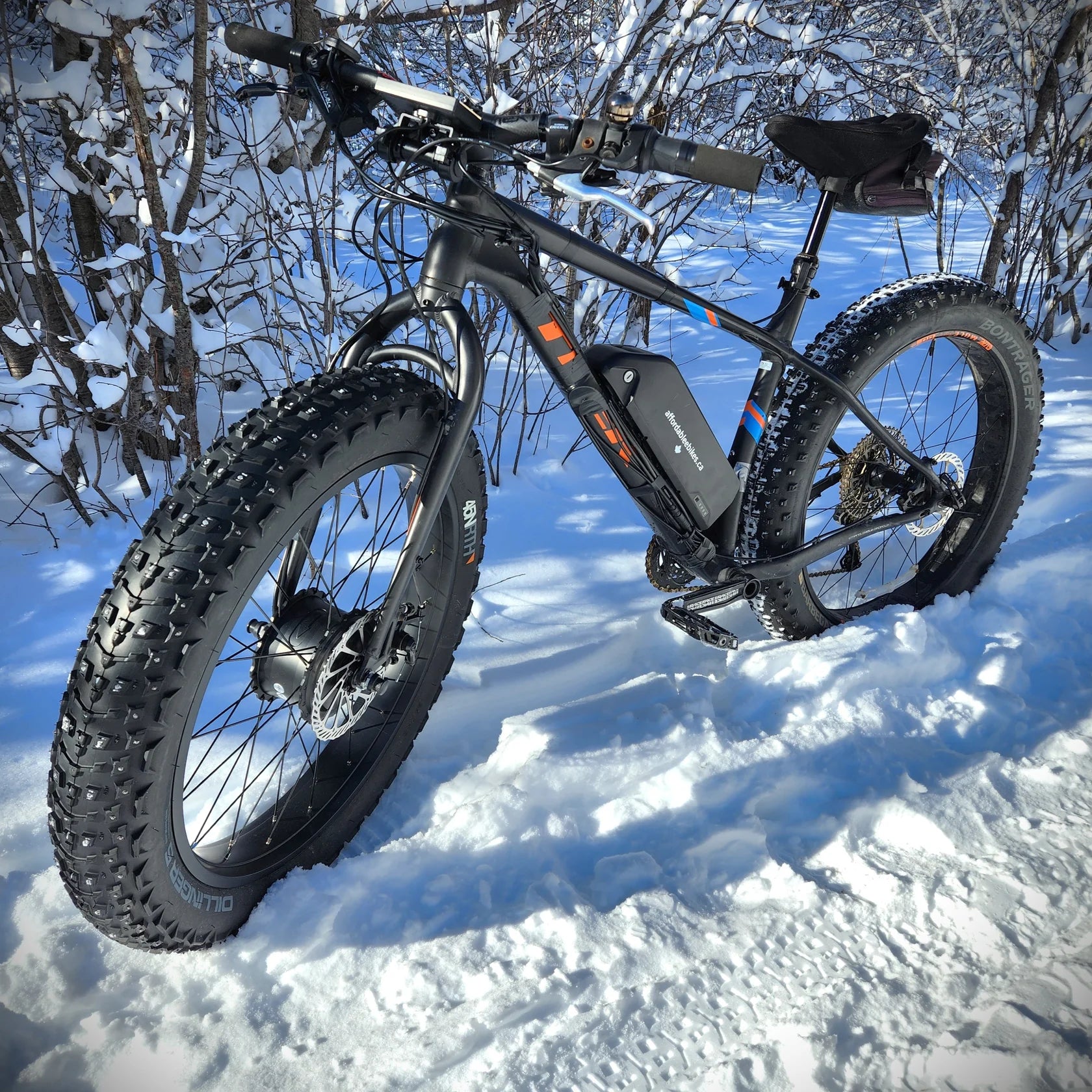

Convert your standard fat bike into an eBike effortlessly (excluding those with a thru-axle).

These motors, manufactured by MXUS, one of the world's largest hub motor factories, are incredibly sturdy.

Operating on either 36V or 48V, although the latter allows them to achieve their full potential.

While the absolute top speed can exceed 50+km/hr, you can easily adjust it to a safer 32km/hr or 40km/hr through the display. Safety always comes first!

This comprehensive kit includes everything you need to electrify your bike (except the battery, a complete kit with a battery can be found HERE).

Kit Contents:

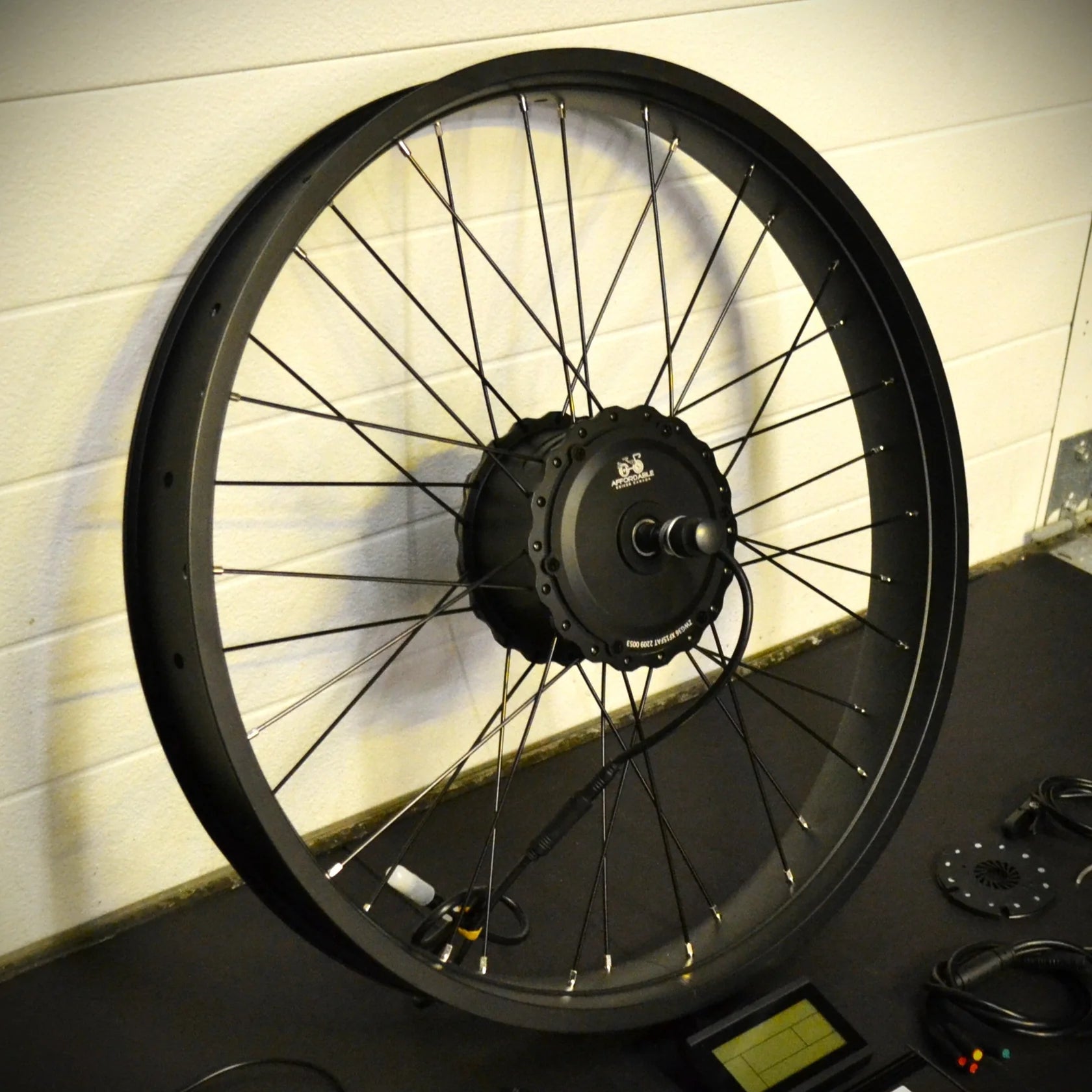

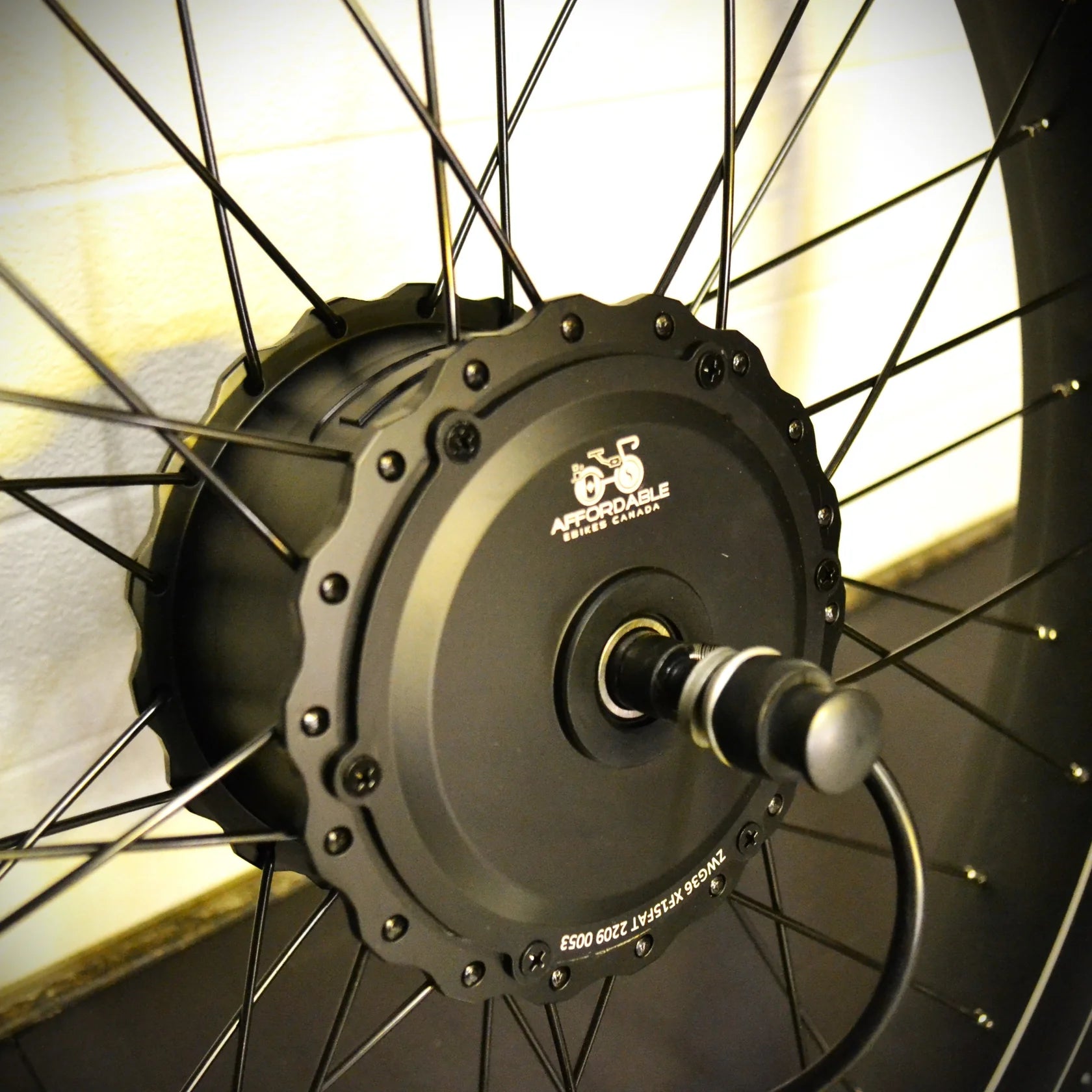

  • Robust Geared Front Hub Motor
  • KT Sine Wave Black Controller 22A (compatible with 36V / 48V)

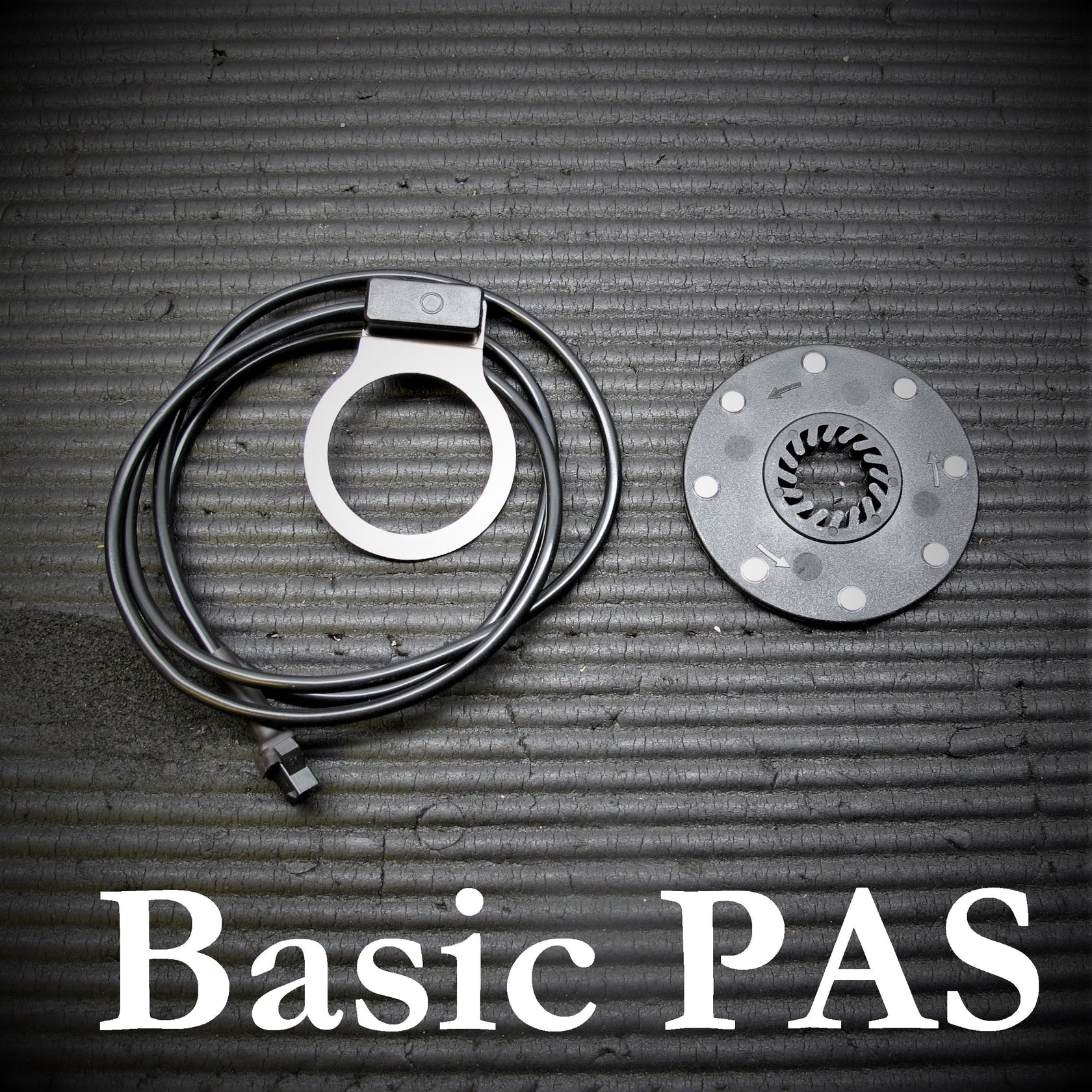

  • Pedal Assist Sensor

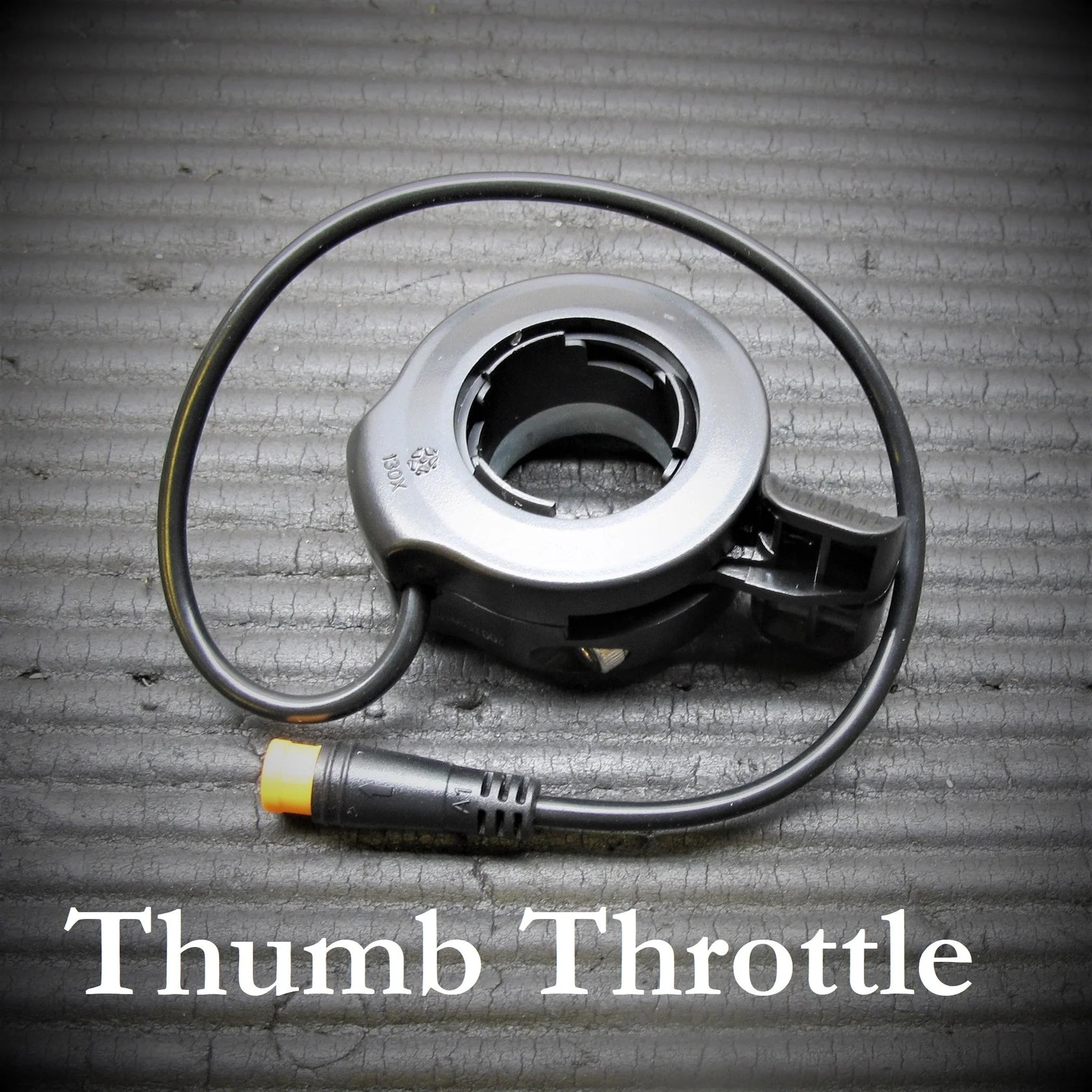

  • Throttle

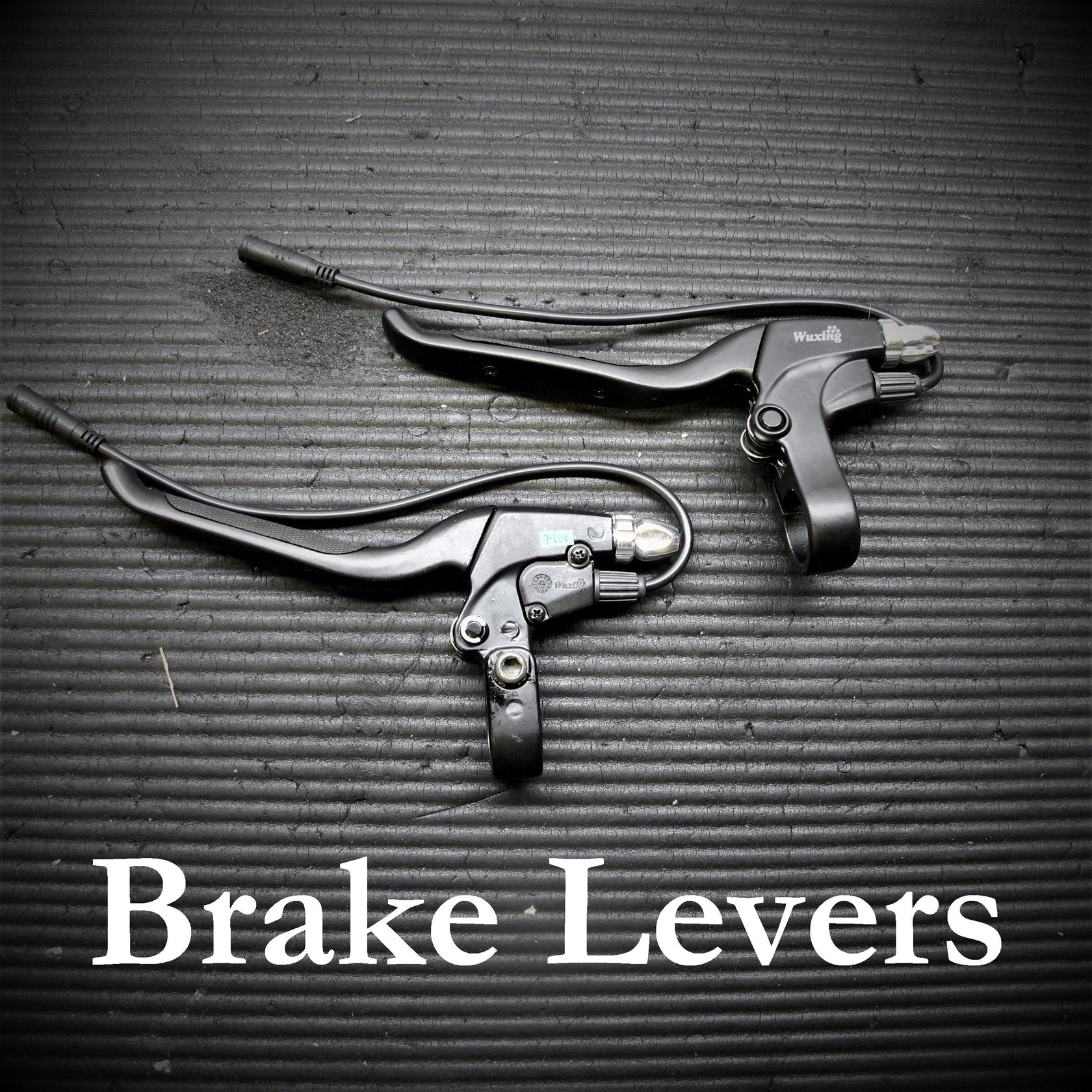

  • Brake Sensors

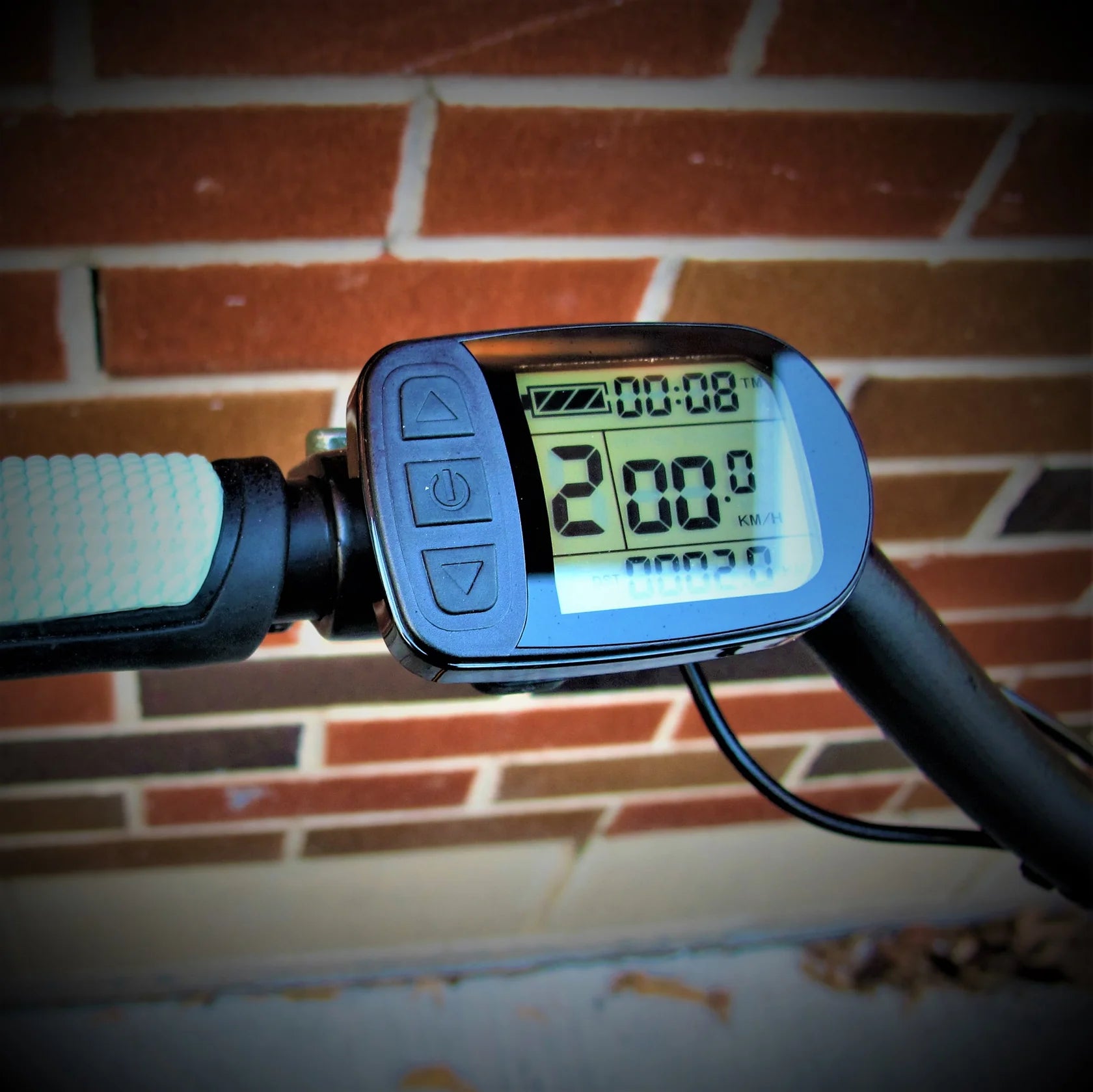

  • LCD5 Side Mount Stealthy Display, providing all essential information
  • All essential cables

Front motors are straightforward to install and highly convenient.


  1. If you have an Aluminum Fork, use a torque arm! (To check, use a magnet on your fork; if it sticks, the fork is steel, and you're fine without a torque arm). Aluminum fork dropouts may snap under heavy loads. While steel will bend and flex, aluminum tends to snap.
  2. You MAY need to lightly file your dropouts; the axles are 10mm wide, while some dropouts are around 9.5mm. This is usually NOT the case, but it sometimes is. Don't hesitate to file it down slightly until the axle slides in smoothly.


Please email with the
 Basic Style (Universal)

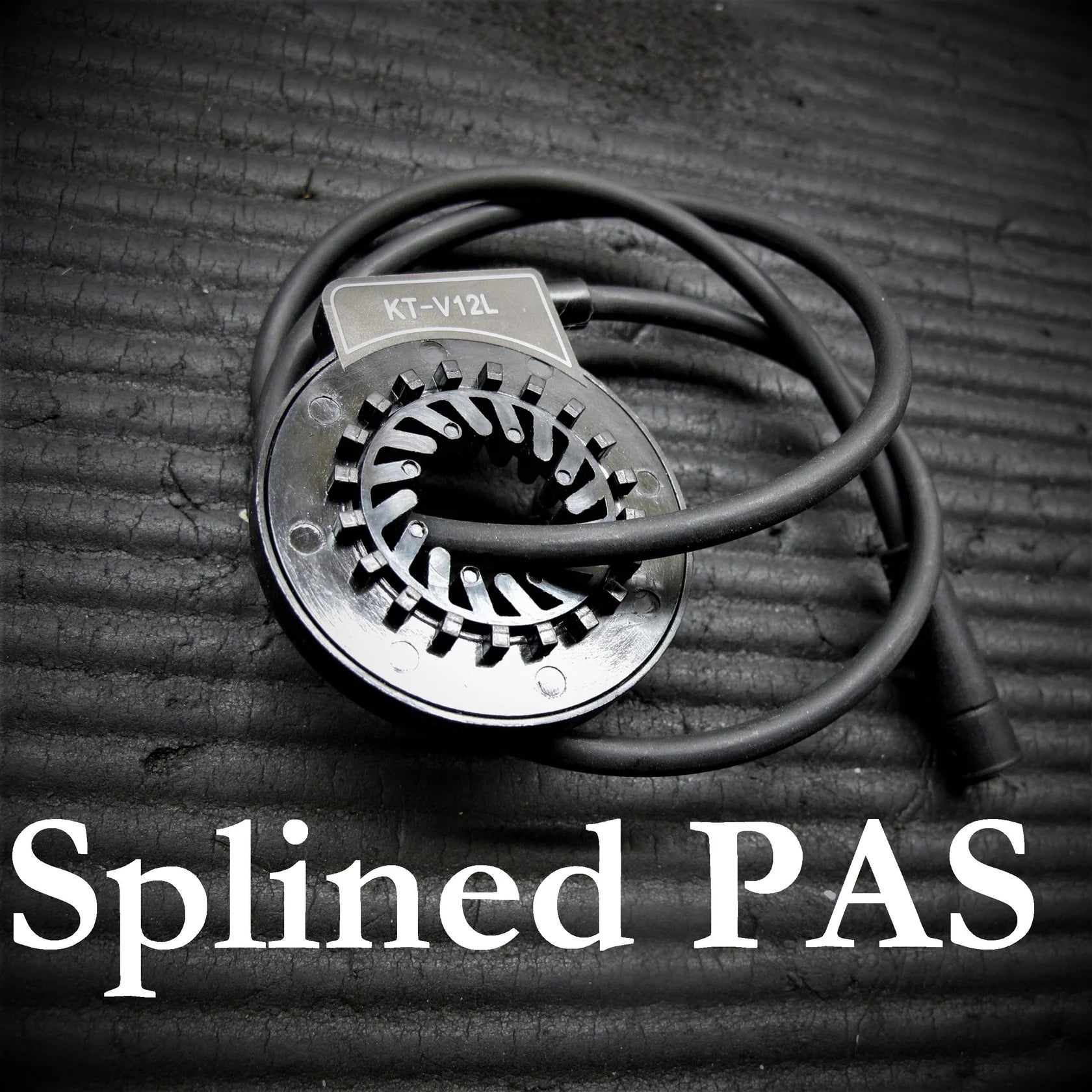

 Splined Type

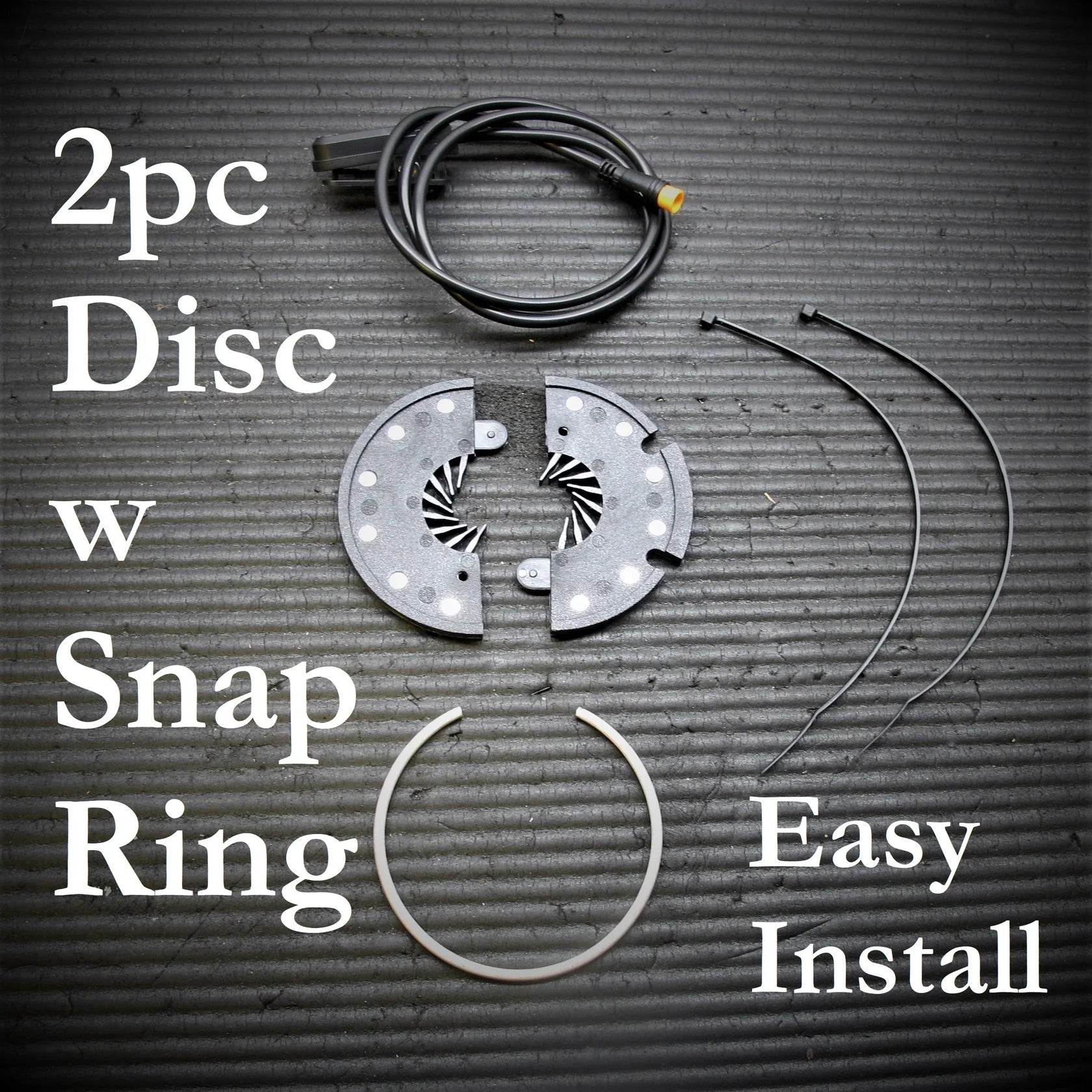

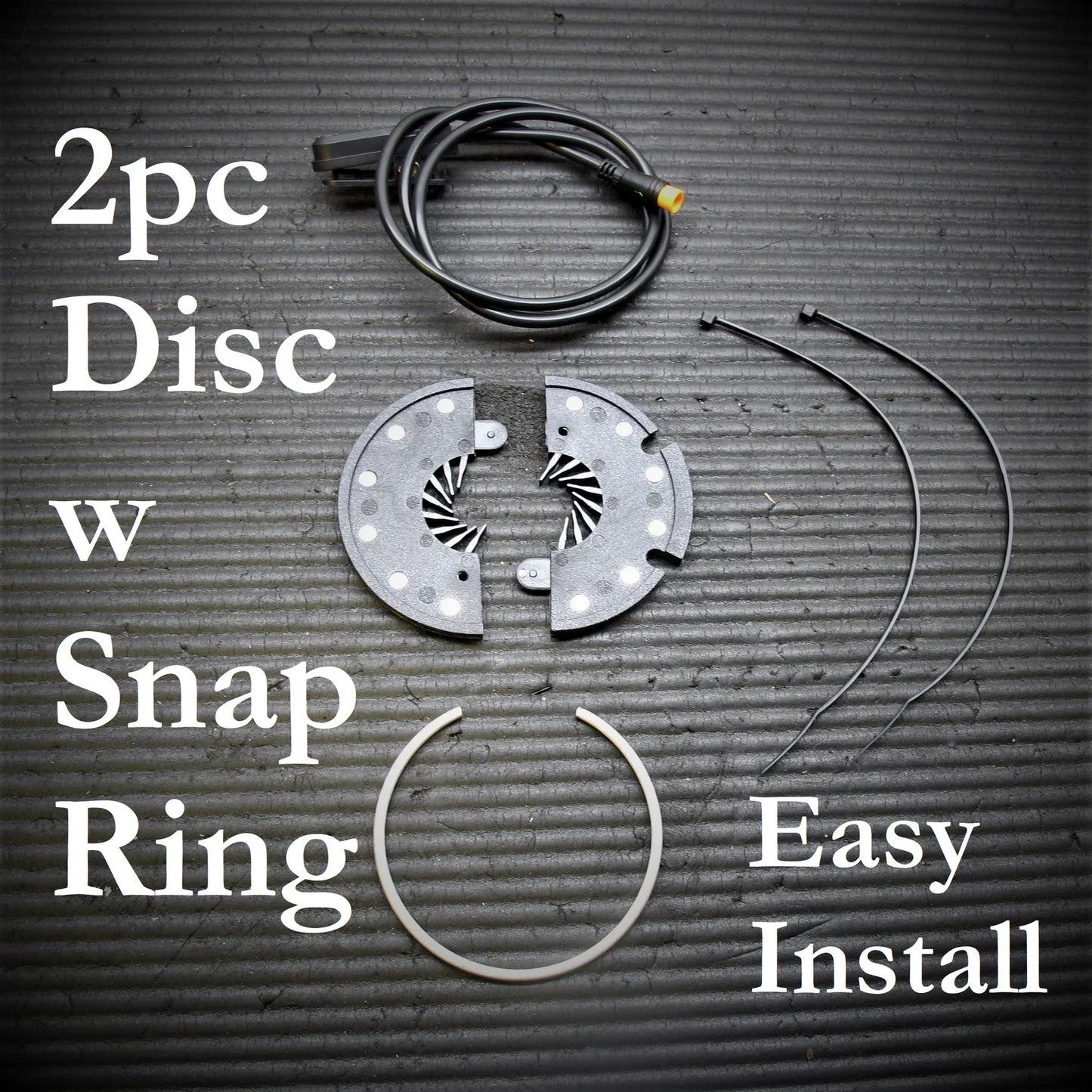

 2pc Disc w Snapring

View full details
